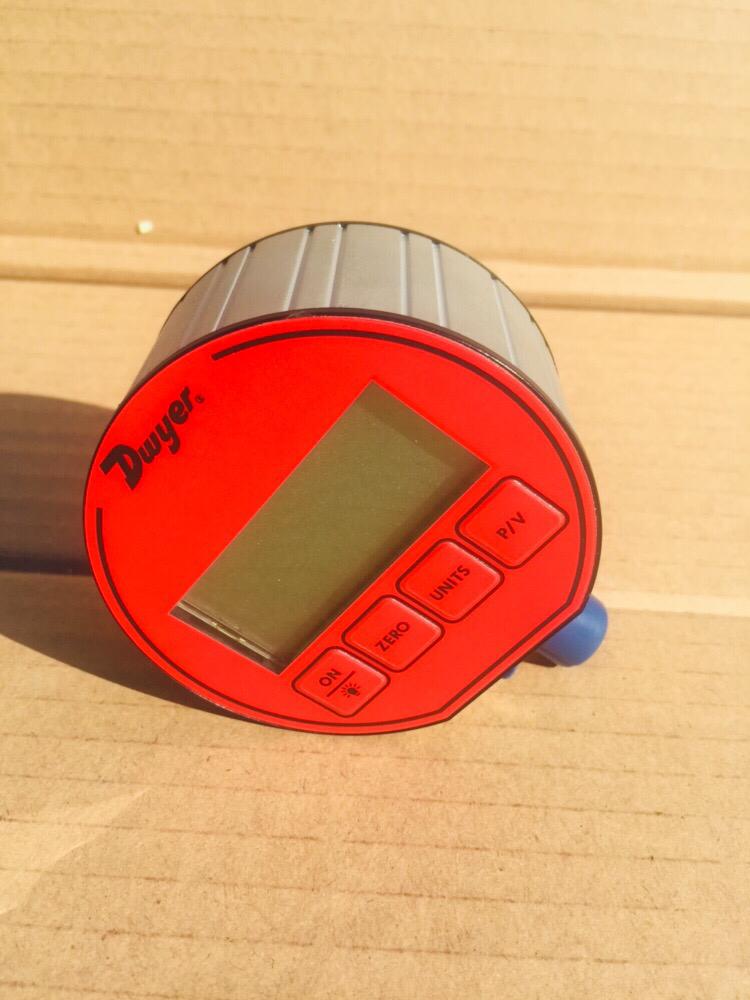

Digital Pressure Gauge Dwyer

�

Specification
Service:	Compatible liquids and combustible gases (for FM listing see Agency Approvals below).
Wetted Materials:	Type 316L SS.
Housing Materials:	Polycarbonate front and back cover, anodized aluminum extruded housing with recessed grooves, polycarbonate overlay, Buna-N O-rings, 316L SS sensor construction.
Accuracy:	DPG-000: 0.5% FS; DPG-100: �0.25% FS; �1 least significant digit @ 70�F (21�C) (includes linearity, hysteresis, repeatability).
Pressure Limit:	2x pressure range for models ?1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range.
Enclosure Rating:	Designed to meet NEMA 4/4X (IP66).
Temperature Limits:	0 to 130�F (-18 to 55�C).
Thermal Effect:	Between 70 to 130�F is 0.016%/F. Between 32 to 70�F is 0.026%/F. Between 10 to 32�F is 0.09%/F. Between 0 to 10�F is 0.50%/F.
Size:	3.00" OD x 1.90" deep (max).
Process Connection:	1/4" male NPT.
Weight:	8.84 oz (275 g).
Display:	4 digit (.425" H x .234" W digits).
Power Requirements:	(2) AAA alkaline batteries, included, user replaceable.
Battery Life:	2000 hours typical; Low battery indicator. (60 hours in continuous use).
Auto Shut-Off:	Gage: 60 minute auto shut-off. Auto shut-off may be disengaged. Backlight: 2 minute auto shut-off.
