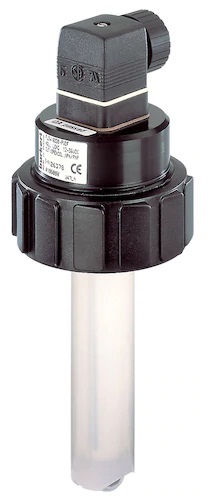

Burkert 8020
| General data |
|
| Compability |
With fittings So2o |
| Materials |
|
| Housing / union nut |
PE / PC |
| Cable plug |
PA |
| Wetted parts materials fitting |
Brass, stainless steel 1.4404/316L, PVC, PP, PVDF |
| Sensor armature, paddle wheel |
PVDF |
| Axis, bearing / Seal |
Ceramics / FKM |
| Electrical connection |
Cable plug |
| Connection Cable |
1.5 mm² cross section; max 50 m length, shielded |
|
| Complete device data (fitting + electronic module)
| Pipe diameter |
DN20…DN400 |
| Measuring Range |
0.3…10 M/S |
| Medium Temperature with fitting in PVC / PP, |
0…+50°C/0…+80°C |
| Stainless steel, brass, pvdf |
-15…+80°C |
| Medium presure max |
PN10 |
| Viscosity / Pollution |
300 cST. Max / max 1% |
| Measurement deviation |
|
| Teach-in |
±1% of Reading |
| Standart K-factor |
±2.5% of Reading |
| Linearity |
±0.5% of FS |
| Repeatability |
±0.4% of Reading |
| Environment |
|
| Ambient temperature |
-15…+60°C |
| Relative humidity |
?80%, without condensation |
| Electrical data |
|
| Operating voltage |
12…36V DC |
| Current consumption |
with sensor |
| Pulse version |
? 50 mA |
| Pulse "Low power" version |
? 0.8 mA |
| Output: Frequency |
|
| Pulse version |
Transistor NPN/PNP, open collector, max 100 mA, |
|
frequency: 0…300Hz; duty cycle ½ |
| Pulse "Low power" version |
Transistor NPN, open collector, max 10 mA, |
|
frequency: 0…300Hz; duty cycle ½ |
| Reversed polarity of DC |
Protected |
