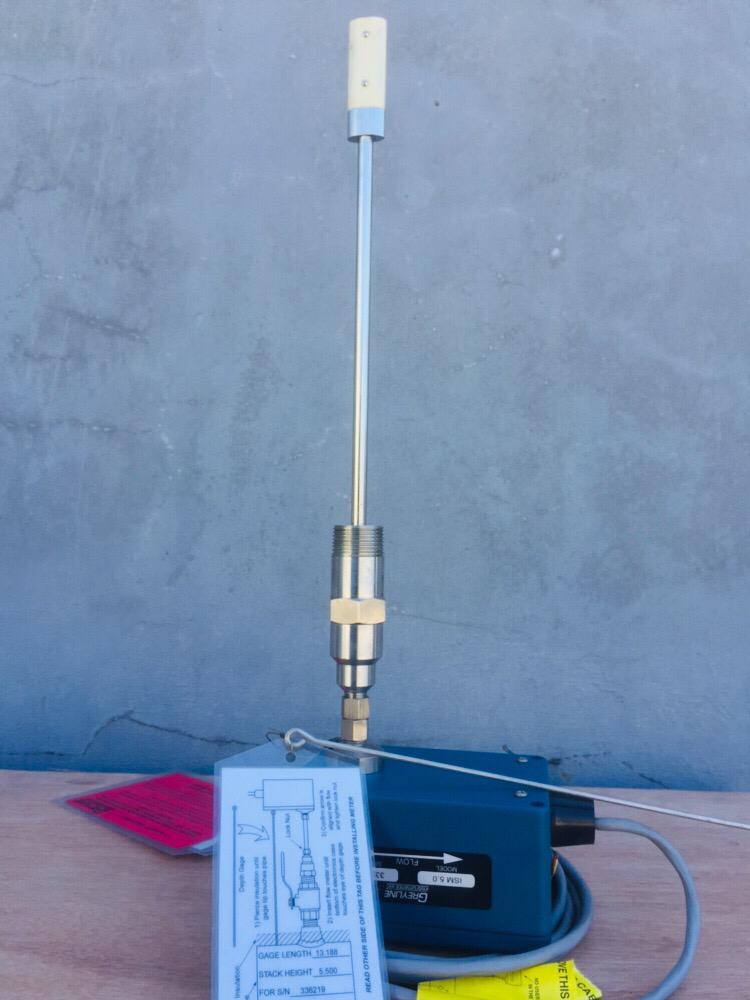

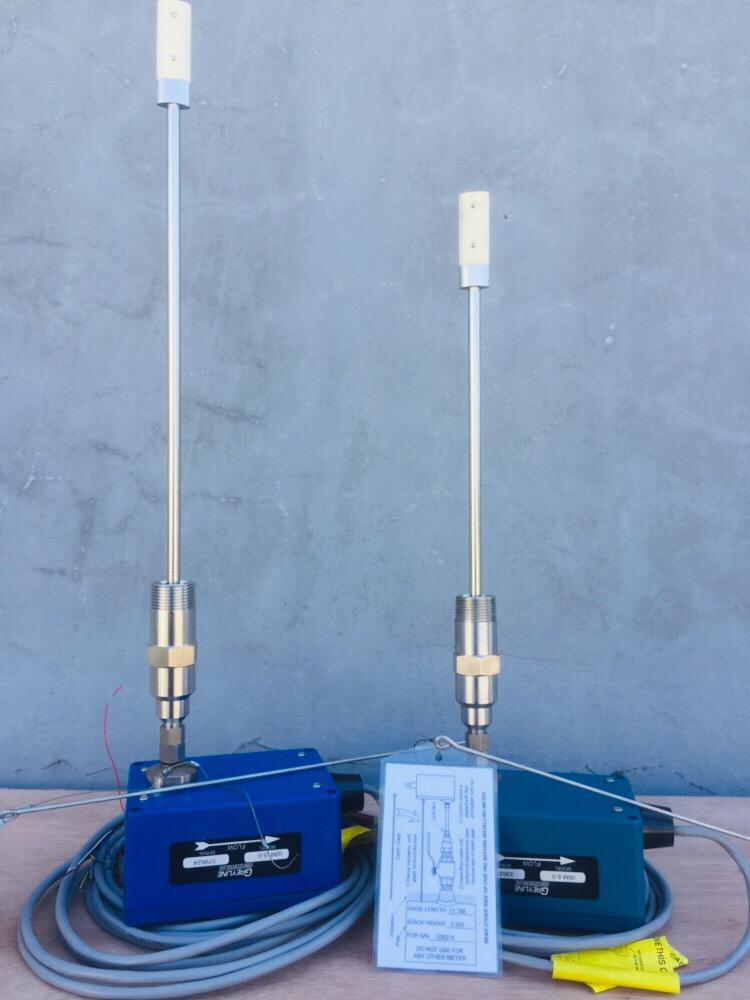

ISM 5.0

Flow Measurement Range	0.1 to 20 ft/sec (0.03 to 6 m/sec), 200:1 turndown
Accuracy	�1.0% of reading from 2 to 20 ft/sec (0.6 to 6.0 m/sec)
	�0.02 ft/sec (0.06 m/sec) below 2 ft/sec (below 0.6 m/sec)
Nominal Pipe Size	3" to 72" diameter (DN75 mm to 1800 mm)
Liquid Temperature Range	-15� to 250�F (-26 to 121�C)
Electronics Operating Temperature	-20� to 150�F (-28� to 65�C
Maximum Operating Pressure	200 psi (14 bar)
Power Input	0-28, 250mA @24VDC(6 Watts)
	20-28, 50-60Hz, 8VA
Analog Output	Selectable 4-20mA, 0-5V or 0-10V
Wetted Materials	316L stainless steel, polypropylene
Electronics Enclosure	Watertight, airtight, dust proof (IP68) powder coated cast aluminum
